In the world of industrial construction, piping systems are rarely static. Refineries expand, pipelines are upgraded, process units are modified, and new equipment is continuously integrated into existing operating facilities. At the center of these modifications lies one of the most sensitive and high-risk activities in engineering and construction:

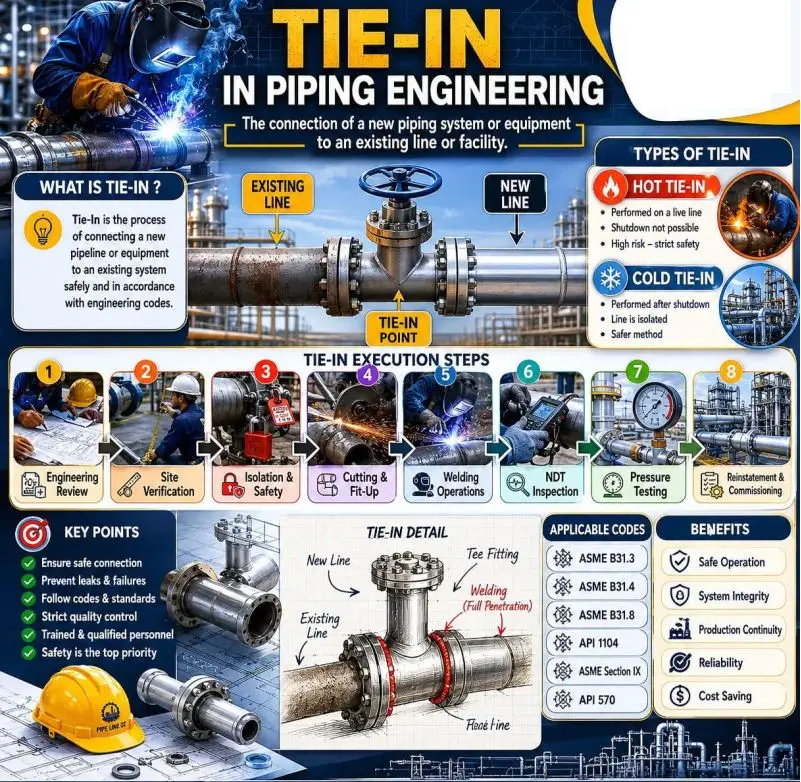

The Tie-In Operation

A tie-in is far more than simply joining two pipes together. It is a carefully planned engineering, construction, safety, and commissioning activity that connects new infrastructure to an existing operating system while maintaining plant integrity, operational continuity, and compliance with international standards.

In industries such as oil & gas, petrochemicals, power generation, and pipeline transportation, tie-ins represent some of the most critical phases of project execution because they often involve working around live systems, hazardous fluids, high pressure, and limited shutdown windows.

This article provides a detailed understanding of tie-ins in piping and pipeline engineering, including their types, execution methodology, safety considerations, inspection requirements, and engineering significance.

What is a Tie-In in Piping Engineering?

A Tie-In is the process of connecting a new pipeline, piping section, equipment, or system into an existing operating or isolated facility.

In simple terms:

A tie-in is the physical and engineered connection point where a new system becomes integrated with an existing one.

The operation may involve:

• Cutting existing piping
• Fit-up and alignment
• Welding
• Non-destructive testing (NDT)
• Pressure testing
• Flushing and cleaning
• Commissioning and startup

The primary objective is to ensure that the new system becomes safely and reliably integrated into the plant without compromising:

• Structural integrity
• Process safety
• Operational continuity
• Code compliance
• Equipment reliability

Because of the risks involved, tie-ins are considered one of the most carefully controlled activities in industrial projects.

Why Tie-Ins Are Critical in Industrial Facilities

Modern industrial plants continuously evolve over their operational life. New production demands, process optimization, regulatory upgrades, and maintenance requirements frequently require modifications to existing systems.

Tie-ins enable these modifications without completely rebuilding the facility.

Major reasons tie-ins are performed include:

1. Plant Expansion

Adding new process units, storage tanks, or production lines requires integration with existing piping networks.

2. Capacity Enhancement

Existing systems are upgraded to handle increased production rates.

3. Equipment Replacement

Old pumps, heat exchangers, compressors, or vessels may require reconnection to new piping.

4. Brownfield Modifications

Many facilities undergo retrofitting while remaining operational.

5. Pipeline Network Extensions

New pipeline sections are tied into operating transmission systems.

Without tie-ins, industrial facilities would require complete shutdowns and reconstruction for every modification—an economically impractical approach.

Where Tie-Ins Are Commonly Used

Tie-in operations are extensively used across multiple industries.

Common applications include:

• Oil & Gas Facilities
• Refineries
• Petrochemical Plants
• LNG Terminals
• Power Plants
• Offshore Platforms
• Onshore Pipelines
• Water Transmission Networks
• Chemical Processing Facilities
• Plant Expansion Projects
• Brownfield Engineering Modifications

In many of these environments, tie-ins are executed under highly constrained operational and safety conditions.

Types of Tie-Ins in Piping Systems

Tie-ins are broadly classified into two major categories depending on whether the existing system remains operational during the activity.

1. Hot Tie-In (Hot Tap Tie-In)

A Hot Tie-In is performed while the existing pipeline or system remains in service.

In this case:

• The line remains pressurized
• Fluid flow may continue
• Shutdown is avoided

This method is used when plant shutdown is economically or operationally impossible.

Applications of Hot Tie-Ins

• Critical production facilities
• Transmission pipelines
• Offshore systems
• Utility lines requiring continuous service

Challenges of Hot Tie-Ins

Hot tie-ins are among the highest-risk piping activities because they involve work on live systems containing:

• Flammable fluids
• Toxic chemicals
• High pressure
• High temperature service

Even a small mistake can lead to catastrophic incidents.

Requirements for Hot Tie-In Operations

Hot tie-ins require strict engineering and safety controls, including:

Risk Assessment

Detailed hazard identification and mitigation planning.

Permit to Work (PTW)

Formal authorization process before execution.

Gas Monitoring

Continuous monitoring for combustible or toxic gases.

Pressure and Temperature Control

Operating conditions must remain within approved limits.

Specialized Welding Procedures

Welding procedures must account for live service conditions.

Fire Prevention Measures

Fire watch teams and emergency response preparedness are mandatory.

Because of the risks involved, hot tie-ins are typically executed only by highly specialized contractors and experienced personnel.

2. Cold Tie-In

A Cold Tie-In is performed after the line has been fully isolated and shut down.

This is considered the safest tie-in method because:

• The system is depressurized
• Hazardous fluids are removed
• Welding risks are significantly reduced

When Cold Tie-Ins Are Used

Cold tie-ins are usually performed during:

• Plant shutdowns
• Turnarounds
• Scheduled maintenance
• Major modifications

Because the system is isolated, cold tie-ins allow safer and more controlled execution.

Main Steps in Tie-In Execution

Successful tie-ins require detailed coordination between engineering, construction, operations, safety, inspection, and commissioning teams.

The process generally follows a structured workflow.

1. Engineering Review

Before field execution begins, a comprehensive engineering review is performed.

Documents reviewed typically include:

• Piping & Instrumentation Diagrams (P&IDs)
• Isometric Drawings
• Line Lists
• Stress Analysis Reports
• Material Specifications
• Welding Procedures
• Support Drawings
• Plot Plans

The objective is to verify that the proposed tie-in is technically feasible and code compliant.

2. Site Verification

Field conditions must match engineering assumptions.

Site verification includes checking:

• Pipe dimensions
• Orientation
• Elevation
• Existing line condition
• Space availability
• Accessibility
• Spool compatibility

In brownfield projects, actual site conditions often differ from drawings due to undocumented modifications over time.

This makes field verification extremely important.

3. Isolation and Safety Preparation

Before cutting into an existing system, proper isolation is mandatory.

Isolation methods may include:

• Blind flanges
• Valve lockout/tagout (LOTO)
• Draining
• Flushing
• Purging
• Gas freeing

For hydrocarbon systems, nitrogen purging is commonly used to eliminate combustible vapors.

Importance of Safety During Tie-Ins

Safety is the highest priority during tie-in operations because workers are exposed to:

• Residual hydrocarbons
• Toxic gases
• Pressure hazards
• Welding hazards
• Confined spaces
• Simultaneous operations

Even isolated systems may contain trapped energy or residual fluid pockets.

Therefore, safety procedures are strictly enforced throughout the activity.

4. Cutting and Fit-Up

Once the system is confirmed safe, mechanical preparation begins.

Operations include:

• Cutting the existing pipe
• Edge preparation (beveling)
• Pipe alignment
• Root gap adjustment
• Temporary support installation

Fit-up accuracy is critical because poor alignment can introduce:

• Welding defects
• Residual stress
• Excessive nozzle loads
• Future leakage problems

All tolerances must comply with project specifications and applicable piping codes.

5. Welding Operations

Welding is one of the most critical phases of tie-in execution.

Welding must comply with:

• Approved Welding Procedure Specifications (WPS)
• Qualified welder certifications
• Applicable ASME/API codes
• Project quality requirements

Common Welding Processes Used

GTAW (Gas Tungsten Arc Welding)

• High-quality root pass welding
• Common for stainless steel and critical services

SMAW (Shielded Metal Arc Welding)

• Widely used for field welding
• Flexible and economical

FCAW (Flux Cored Arc Welding)

• High productivity for larger diameter piping

The selected welding process depends on:

• Pipe material
• Wall thickness
• Fluid service
• Site conditions

6. Non-Destructive Testing (NDT) and Inspection

After welding, inspection is performed to verify weld quality and integrity.

Common NDT methods include:

Visual Inspection (VT)

Initial inspection of weld appearance and workmanship.

Radiographic Testing (RT)

X-ray inspection for internal defects.

Ultrasonic Testing (UT)

Detection of internal discontinuities.

Magnetic Particle Testing (MT)

Surface crack detection in ferromagnetic materials.

Liquid Penetrant Testing (PT)

Surface defect inspection for non-ferrous materials.

Inspection acceptance criteria are defined by applicable codes and project specifications.

7. Pressure Testing and Leak Testing

Once welding and inspection are complete, the system undergoes pressure testing.

Types of testing include:

Hydrostatic Testing

Using water to verify pressure integrity.

Pneumatic Testing

Using air or nitrogen where hydrotesting is impractical.

Leak Testing

Verification of sealing integrity at joints and connections.

Testing ensures the tie-in can safely withstand operating conditions.

8. Commissioning and Startup

After successful testing:

• Temporary blinds are removed
• Systems are cleaned and flushed
• Instruments are calibrated
• Operational checks are completed

The tie-in is then integrated into normal plant operations.

Applicable Codes and Standards for Tie-Ins

Tie-ins must comply with internationally recognized engineering standards.

Commonly applicable codes include:

ASME B31.3

Process Piping

ASME B31.4

Liquid Transportation Systems

ASME B31.8

Gas Transmission and Distribution Piping

API 1104

Pipeline Welding Standards

ASME Section IX

Welding Qualifications

API 570

Piping Inspection Code

Project Specifications

Client-specific engineering requirements

Compliance with these standards ensures safety, reliability, and regulatory acceptance.

Major Challenges in Tie-In Projects

Tie-ins are often executed under difficult conditions.

Common challenges include:

• Limited shutdown windows
• Congested work areas
• Unknown field conditions
• Maintaining production continuity
• High safety risks
• Tight dimensional tolerances
• Coordination between multiple disciplines

Because of these complexities, tie-ins require extensive planning and execution control.

Best Practices for Successful Tie-In Execution

To improve safety and reliability, engineering teams typically follow these best practices:

• Conduct detailed constructability reviews
• Perform accurate field measurements
• Use experienced welding personnel
• Implement strict safety controls
• Verify alignment before welding
• Perform full quality inspections
• Maintain clear communication between disciplines
• Develop contingency plans for unexpected field conditions

Successful tie-ins depend as much on coordination and planning as on technical execution.

Conclusion

Tie-ins are among the most critical operations in piping and pipeline engineering because they bridge the gap between existing infrastructure and new development. Whether performed during a shutdown or on a live system, tie-ins demand a high level of engineering precision, safety management, construction expertise, and operational coordination.

From engineering review and field verification to welding, inspection, and commissioning, every stage must be carefully controlled to ensure the integrity of the facility and the safety of personnel.

In modern industrial projects, where downtime costs are enormous and operational continuity is essential, tie-ins play a vital role in enabling expansion, modernization, and long-term plant sustainability.

Ultimately, a successful tie-in is not merely a pipe connection—it is the seamless integration of engineering, safety, quality, and operational excellence.
