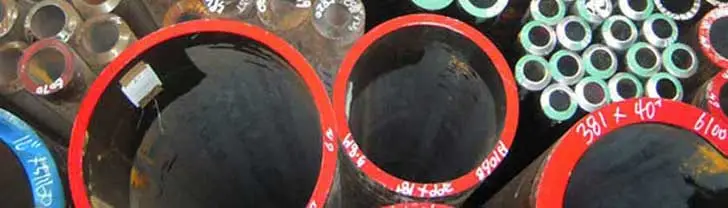

Industrial piping may look deceptively simple: a hollow cylindrical component designed to move something from one location to another. Yet behind that simple shape is an entire world of engineering decisions involving pipe dimensions, materials, pressure, temperature, corrosion, manufacturing standards, wall thickness, cost, and service conditions.
From transporting crude oil and natural gas to carrying steam, cooling water, chemicals, powders, and gases, pipes form the backbone of countless industrial facilities. Refineries, chemical plants, power stations, water-treatment facilities, food-processing plants, manufacturing facilities, and many other industries depend on properly selected piping systems.
But what exactly qualifies as a pipe? How is a pipe different from a tube? Which pipe material should be selected for a particular service? And when is lined pipe a better choice than using a solid corrosion-resistant material?
This technical reference on pipe definitions provides a useful foundation for answering these questions. It describes pipes as hollow tubes with a circular cross-section used to transport liquids, gases, pellets, powders, and other products, while distinguishing industrial pipe from tube through their dimensional conventions and typical applications.
Let’s explore the fundamentals of industrial pipes, pipe materials, pipe vs. tube, lined pipe, and the factors that determine the right piping solution.
What Is a Pipe? Understanding the Basic Definition
At its most fundamental level, a pipe is a hollow cylindrical product with a round cross-section designed to convey materials from one point to another.
Those materials can include:
- Liquids
- Gases
- Steam
- Powders
- Pellets
- Slurries
- Process chemicals
- Water
- Hydrocarbons
This seemingly straightforward definition encompasses an enormous range of industrial applications.
A pipe may be only a few millimeters in diameter in an instrumentation system or several meters across in a major water or industrial installation. Its material may range from carbon steel and stainless steel to plastic, cast iron, copper, nickel alloys, or specially lined constructions.
Industrial pipes conform to dimensional requirements associated with ASME B36.10 for welded and seamless wrought steel pipe and ASME B36.19 for stainless steel pipe.
The key point is that an industrial pipe is not selected simply because it is hollow and cylindrical. Its dimensions, material, manufacturing method, and construction must be appropriate for the service in which it will operate.
Pipe vs Tube: What Is the Difference?
One of the most common sources of confusion in mechanical and piping engineering is the difference between a pipe and a tube.
Although both are hollow cylindrical products, they are generally identified and specified differently.
How Pipe Is Specified
Industrial pipe is customarily identified by:
- Nominal Pipe Size (NPS)
- Schedule number (SCH), which defines wall thickness
For example, NPS 1/2 Schedule 40 as having an outside diameter of 21.3 mm and a wall thickness of 2.77 mm.
Notice that the nominal designation does not simply mean the pipe has an actual 1/2-inch outside diameter.
How Tube Is Specified
Tube, by contrast, is normally specified using:
- Outside diameter (OD)
- Wall thickness (WT)
Wall thickness may be expressed in thousandths of an inch or using Birmingham Wire Gauge (BWG), depending on the application.
To illustrate the distinction with an example, consider a 1/2-inch × 1.5 mm tube, whose outside diameter is 12.7 mm and whose wall thickness is 1.5 mm.
This difference in terminology is important when purchasing, designing, or replacing components. A request for “half-inch pipe” should not automatically be interpreted as a request for a tube with a 12.7 mm outside diameter.
Why the Pipe vs Tube Distinction Matters in Engineering
The pipe-versus-tube distinction is more than a matter of vocabulary.
The two products are commonly used for different purposes.
Basically, tube is principally used in applications such as heat exchangers, instrument lines, and small connections associated with equipment including compressors and boilers.
Industrial pipe, meanwhile, is commonly associated with larger piping systems and process or utility services.
This means an engineer needs to understand the intended application before selecting a tubular product.
A component that looks physically similar may nevertheless have a completely different dimensional specification, manufacturing standard, or intended service.
The Most Important Factor: Choosing the Right Pipe Material
A pipe’s dimensions are only part of the engineering equation.
Material selection can determine whether a piping system performs reliably for years—or suffers premature failure.
Different fluids and operating conditions expose pipe to different forms of stress and degradation.
For example, a piping system may need to withstand:
- High internal pressure
- High or low temperatures
- Corrosive chemicals
- Mechanical loads
- Thermal expansion
- Erosion
- Abrasion
- Hygienic requirements
- Environmental exposure
Note that materials engineers are responsible for determining appropriate piping materials and that much industrial pipe is manufactured from carbon steel according to different ASTM standards.
The material decision therefore needs to be based on the actual service—not simply the lowest purchase price.
Carbon Steel Pipe: The Industrial Workhorse
Among industrial piping materials, carbon steel is one of the most widely used choices.
Why?
Because it offers a useful combination of mechanical and economic characteristics.
Several important characteristics of carbon steel pipe, including that it is:
- Strong
- Ductile
- Weldable
- Machinable
- Reasonably durable
- Relatively economical
If carbon steel can satisfy the required pressure, temperature, corrosion-resistance, and hygiene requirements, it can be a natural material choice.
This explains its widespread use throughout industrial facilities.
However, “carbon steel is widely used” does not mean it is suitable for every service. Highly corrosive fluids, extreme temperatures, or special cleanliness requirements may demand a different material or a protective lining.
Cast Iron and Ductile Iron Pipe: Where They Fit
Iron-based piping has its own important applications.
Cast iron and ductile iron are materials used principally for water, gas, and sewage lines.
These applications highlight an important principle of material selection:
The best pipe material is determined by the service environment and design requirements, not by material strength alone.
A piping material needs to be evaluated in relation to what it will carry, how it will operate, and what environmental conditions it will encounter.
Plastic Pipe: A Powerful Option for Corrosive Services
Metal isn’t automatically the best answer for every piping application.
Plastic pipe can provide significant advantages when dealing with certain corrosive substances.
Note that plastic pipe may be used to convey actively corrosive fluids and can be particularly useful for handling corrosive or hazardous gases and dilute mineral acids.
This illustrates why corrosion resistance can sometimes be more important than the mechanical properties associated with traditional metals.
However, plastic pipe must also be evaluated for temperature, pressure, mechanical strength, chemical compatibility, installation requirements, and long-term service conditions.
Stainless Steel and Other Metal Alloy Pipes
When carbon steel isn’t sufficient, engineers have a much broader family of materials to choose from.
- Copper
- Lead
- Nickel
- Brass
- Aluminium
- Stainless steels
- Other alloys
These materials are generally selected for particular properties rather than simply because they are alternatives to carbon steel.
For example, a more expensive alloy may be justified by:
- Superior corrosion resistance
- Improved heat transfer
- High-temperature tensile strength
- Compatibility with process chemicals
- Special service requirements
This is a classic engineering trade-off: the cheapest pipe isn’t necessarily the most economical pipe over the complete life of the installation.
Why Stainless Steel Is Increasingly Important
Stainless steel has become increasingly important across applications where corrosion resistance, cleanliness, or specialized performance is required.
Note the growing use of stainless steels in areas where material properties such as corrosion resistance and heat-transfer characteristics are important.
Stainless steel is particularly relevant in industries where contamination or corrosion could compromise product quality or equipment reliability.
Depending on the grade, environment, temperature, and process chemistry, stainless steel can provide an effective alternative to carbon steel.
But again, material selection should be based on the actual service conditions rather than simply assuming that “stainless” automatically means suitable for every corrosive application.
What Is Lined Pipe? The Smart Combination of Materials
What happens when the structural strength and cost advantages of one material need to be combined with the corrosion resistance of another?
This is where lined pipe becomes particularly interesting.
A lined pipe system uses one material as the structural pipe while adding another material to protect the internal surface from the process fluid.
For example, a carbon steel pipe can be internally lined with a corrosion-resistant material.
This approach can provide an attractive combination of:
Structural strength + corrosion protection + economic efficiency
PTFE/Teflon® is an example of an internal lining that can resist chemical attack. It also notes that lining can be applied after fabrication, allowing complete pipe spools to be fabricated before the lining operation.
That can provide significant flexibility in industrial piping design.
Types of Pipe Linings and Protective Coatings
Lining doesn’t necessarily mean one specific material.
Depending on the service, different internal layers or protective coatings can be used.
PTFE
PTFE can provide resistance to chemical attack and is particularly useful for demanding chemical services.
Glass
Glass linings can provide a chemically resistant internal surface for appropriate applications.
Plastic Linings
Various plastics can be used to protect a structural pipe from aggressive fluids.
Concrete Linings
Concrete lining is relevant to particular water and other large-scale applications.
Epoxy Coatings
Epoxy coatings can provide an additional protective barrier against corrosion and environmental exposure.
Bituminous Asphalt
Bituminous coatings can also be used as protective systems for suitable applications.
Zinc Coatings
Zinc-based protection can provide corrosion protection for appropriate pipe systems.
These materials and coatings are examples of approaches used to protect internal or external pipe surfaces.
The selection depends heavily on the fluid, temperature, pressure, chemical environment, and expected service life.
Why Lined Pipe Can Be More Economical Than Exotic Alloys
Suppose a process contains a highly corrosive chemical.
One option may be to construct the entire pipe from a highly corrosion-resistant alloy. This can deliver excellent performance, but the material may be expensive.
Another approach is to use a structurally suitable and more economical pipe material—such as carbon steel—and protect the internal surface with an appropriate lining.
This creates a different engineering strategy:
Use the base material for structural performance and the lining for chemical resistance.
When properly designed and installed, such a system can offer an effective balance between performance and cost.
However, lined pipe introduces its own design considerations, including lining compatibility, fabrication, inspection, joints, temperature limits, mechanical damage, and maintenance.
How Do Engineers Choose the Right Pipe Material?
Selecting pipe material is a multi-factor engineering decision.
Several important considerations can be highlighted, particularly:
- Pressure
- Temperature
- Product type
- Dimensions
- Cost
These factors should not be considered independently.
For example, a fluid might be chemically compatible with a particular plastic but operate at a temperature beyond that material’s practical limits.
Similarly, a metal may have excellent mechanical strength but inadequate corrosion resistance.
The correct choice is therefore the material that satisfies the combined requirements of the service.
Pressure and Temperature: Two Critical Design Questions
Before selecting pipe, engineers need to understand the operating envelope.
Pressure
Internal pressure creates stresses in the pipe wall. The pipe must have adequate mechanical strength and wall thickness for the design conditions.
Temperature
Temperature can affect material strength, corrosion behavior, thermal expansion, chemical compatibility, and allowable operating limits.
A material that performs well at ambient temperature may behave very differently at elevated temperatures.
This is why pipe material selection should never be based solely on a general material name such as “steel” or “plastic.”
The specific grade, standard, design conditions, and service must all be considered.
The Product Being Transported Changes Everything
A pipe carrying clean water faces a very different environment from a pipe carrying concentrated chemicals, abrasive slurry, steam, hydrocarbons, or corrosive gases.
The transported product can influence:
- Corrosion
- Erosion
- Chemical compatibility
- Cleanliness
- Material degradation
- Lining requirements
- Maintenance frequency
- Expected service life
This is why the same pipe material may be excellent for one application and unsuitable for another.
The process fluid is one of the first questions an engineer should ask when selecting a piping material.
Dimensions and Cost: The Engineering Balancing Act
Pipe selection also involves dimensional and economic considerations.
The pipe must have appropriate:
- Diameter
- Wall thickness
- Length
- Connections
- Fittings
- Weight
- Structural support requirements
At the same time, the project must remain economically viable.
Choosing a premium alloy everywhere may provide excellent corrosion resistance but could dramatically increase capital expenditure.
Choosing the least expensive material could reduce initial cost but increase maintenance, replacement, or failure risk.
Good engineering therefore seeks the best life-cycle solution, not necessarily the lowest initial purchase price.
Why Pipe Standards Matter
Standardization is essential in industrial piping because a pipe rarely operates alone.
It must connect with:
- Valves
- Flanges
- Elbows
- Tees
- Reducers
- Pumps
- Heat exchangers
- Pressure equipment
- Other piping components
The pipe reference specifically discusses pipe dimensions in relation to ASME B36.10 and ASME B36.19.
Following recognized standards helps ensure that dimensions and components are compatible and that engineering teams have a consistent technical framework.
It also makes procurement and maintenance more manageable.
Pipe Selection Is About More Than the Pipe Itself
A common misconception is that pipe selection is simply a matter of choosing the right diameter and material.
In reality, the pipe forms part of a larger system.
Engineers also need to consider:
- Pipe fittings
- Flanges
- Valves
- Gaskets
- Supports
- Welding
- Insulation
- Corrosion protection
- Testing
- Inspection
- Thermal expansion
- Installation
- Maintenance
Modern piping design therefore combines materials engineering, mechanical design, process engineering, hydraulics, fabrication, and construction.
A correct pipe specification helps ensure that these different elements work together.
A Practical Pipe Selection Checklist
Before specifying an industrial pipe, ask these questions:
1. What is the fluid or product?
Identify exactly what the piping system will transport.
2. What are the design pressure and temperature?
Determine the operating and design envelope.
3. What material is chemically compatible?
Evaluate corrosion, chemical attack, erosion, and contamination risks.
4. What dimensions are required?
Determine the appropriate nominal size, wall thickness, outside diameter, and related dimensions according to the applicable standard.
5. Is lining necessary?
If the structural material is economical but chemically vulnerable, consider whether an appropriate lining or coating can provide the required protection.
6. What is the life-cycle cost?
Consider purchase price, installation, inspection, maintenance, downtime, replacement, and expected service life.
7. Which standard applies?
Verify the relevant material and dimensional standards before procurement or fabrication.
Final Thoughts: The Right Pipe Is an Engineering Decision
Industrial pipes may appear to be simple components, but their selection involves some of the most important decisions in a piping system.
The distinction between pipe and tube establishes how the product is dimensionally specified. Pipe is typically identified by NPS and schedule, while tube is generally specified by its outside diameter and wall thickness.
Material selection then determines whether the pipe can safely and economically perform its intended duty.
Carbon steel remains a major industrial choice because of its strength, weldability, durability, and comparatively low cost. Cast and ductile iron have important roles in water, gas, and sewage services. Plastic pipe can offer advantages in selected corrosive services, while stainless steels and specialty alloys can provide valuable corrosion resistance, heat-transfer properties, or high-temperature strength.
And when a single material cannot economically provide all the required properties, lined pipe offers an ingenious solution by combining a structural pipe with a protective internal layer.
Ultimately, the best pipe is not simply the strongest, cheapest, or most corrosion-resistant option.
It is the pipe system that provides the right combination of safety, compatibility, durability, performance, standardization, and cost for its specific service.
That is the real foundation of good industrial piping design.
References
- https://whatispiping.com
- wermac.org
